    Re: Sat Nav Power Connector
    Reply #20 on: June 15, 2021, 11:13:01 am
    June 15, 2021, 11:13:01 am
    Thank you very much for your help guys! :762: :763:

    I will order the connectors. Once installed I will take some pics to document it, specially the connector under the seat that isn't published here.

    Regards, Lu.

  • Offline lu3flo   es

    • XR Newbie  ‐    4
    • *
      #21

    Offline lu3flo

    • XR Newbie
    • *
    • Posts: 4
    • Country: es
    Re: Sat Nav Power Connector
    Reply #21 on: July 26, 2021, 12:31:04 am
    July 26, 2021, 12:31:04 am
    Hi guys,

    Sorry for my late reply. I been waiting for the bike more than expected.

    First of all, connector in the front of the bike located with out any problem.

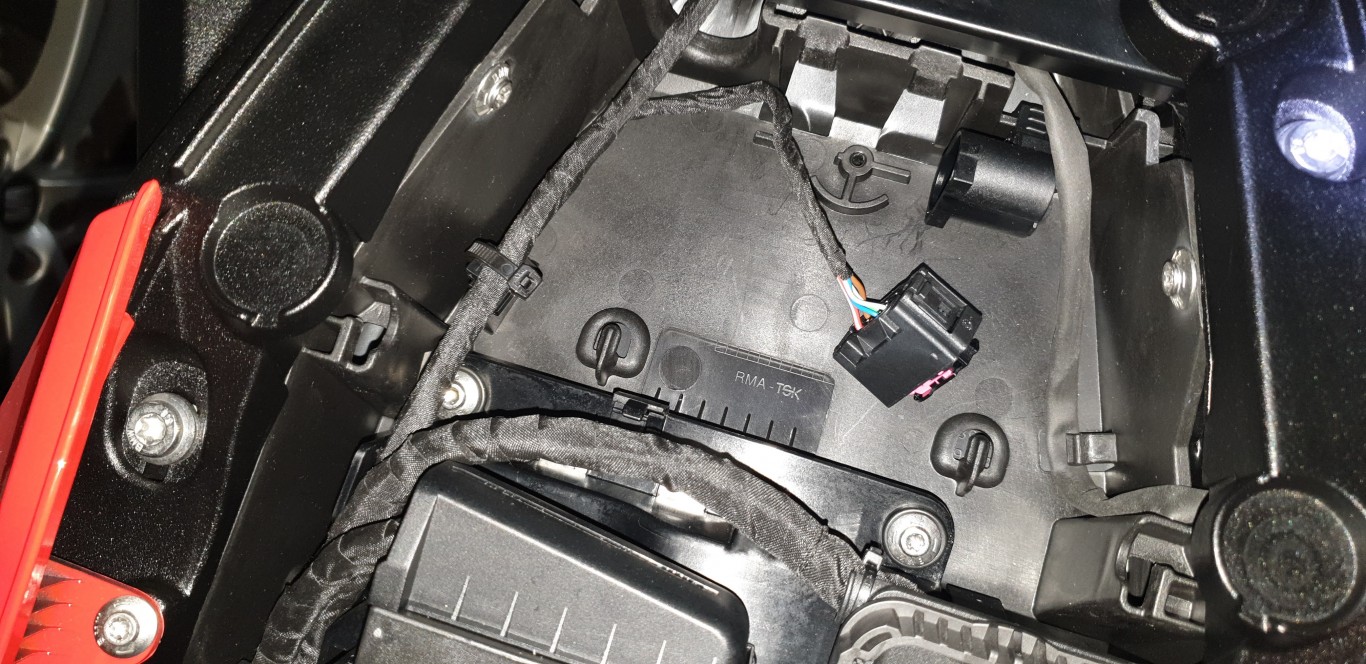

    Connector 1718555-1 under tool kit not found. I've only found the canbus connector as somebody mentioned:

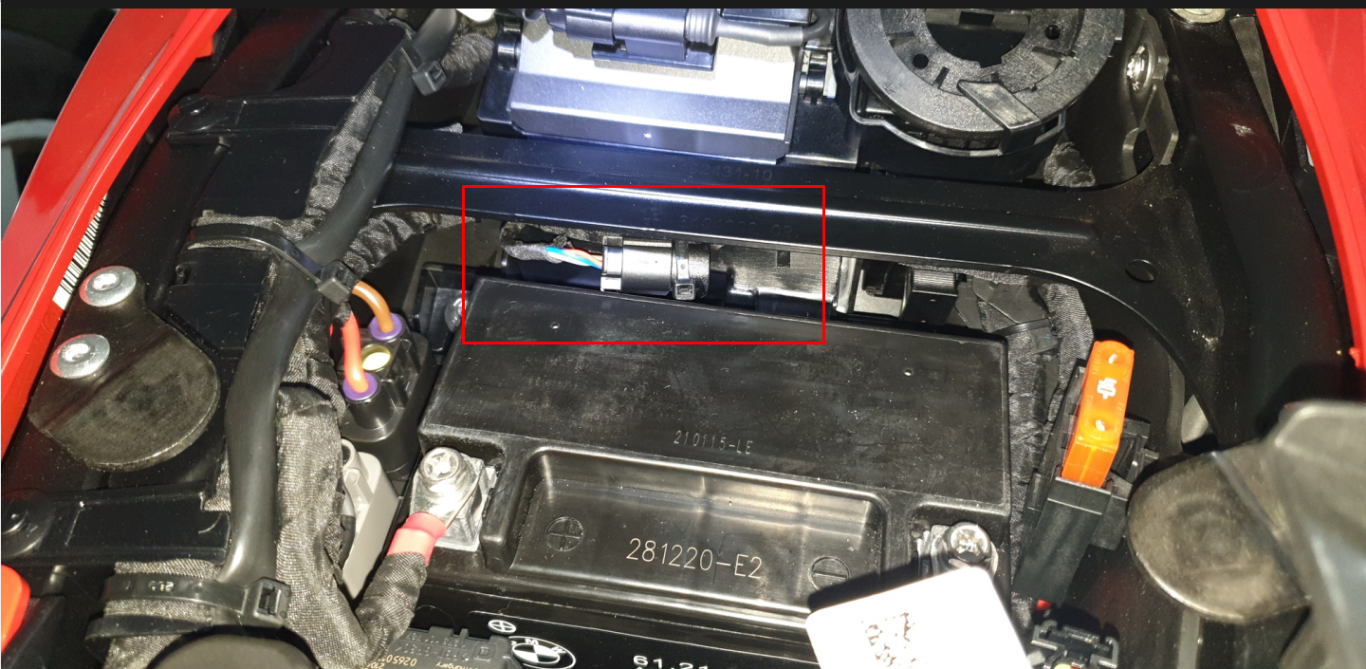

    However i've found another unused connector. Neither is 1718555-1. Is located just in back side of the battery, under the structual crossbar:

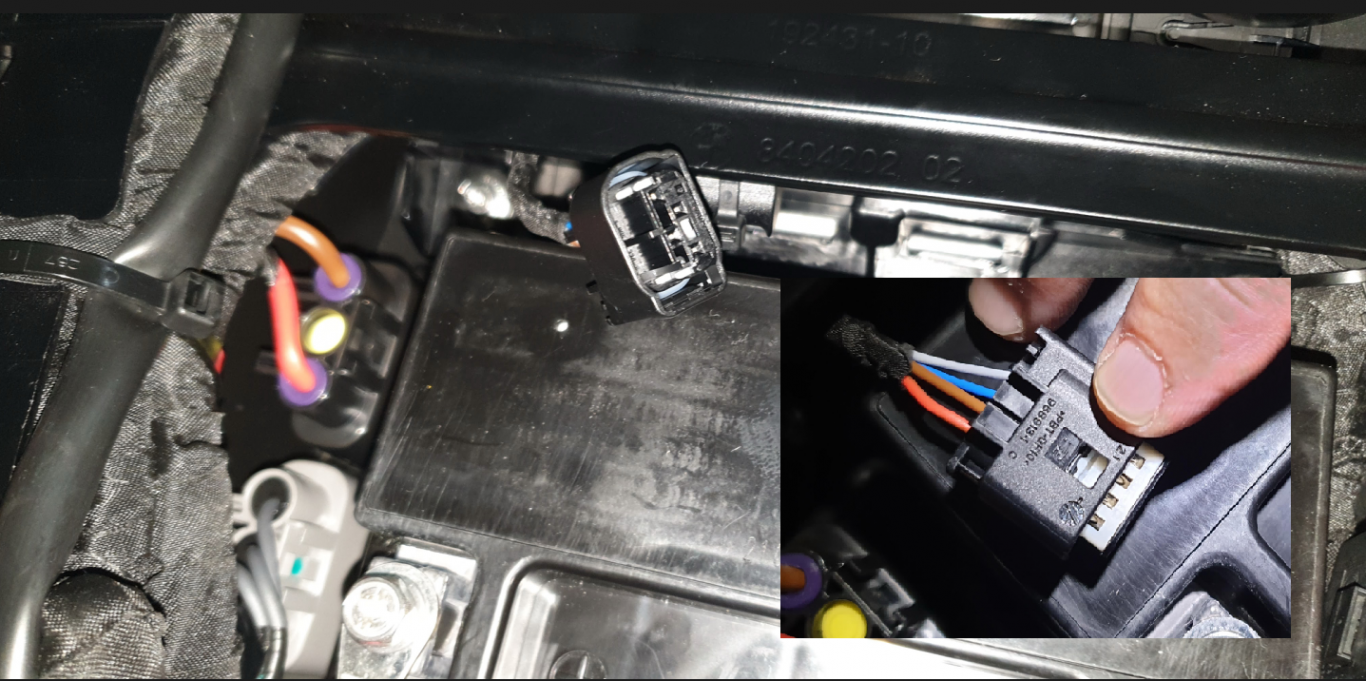

    The connector is different from the other one:



    Any idea where 1718555-1 is hidden?

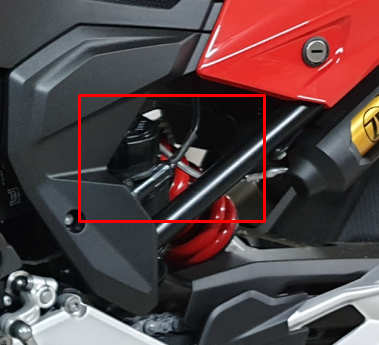

    Meanwhile i've installed a provisional connector from the DIN plug to power the GPS tracker:





    Thanks in advance!  :062:

    Last Edit: July 26, 2021, 12:32:11 am by lu3flo

  • Offline swalker2   gb

    • XR Newbie  ‐    5
    • *
      #22

    Offline swalker2

    • XR Newbie
    • *
    • Posts: 5
    • Town / City: Leeds, UK
    • Country: gb
    Re: Sat Nav Power Connector
    Reply #22 on: June 19, 2022, 09:00:41 am
    June 19, 2022, 09:00:41 am
    Hi all, looking for a bit of help, I purchased the SatNav preparation and the cradle, all from BMW Europe as the lead times were better. I used the connector on page 2 of this chat, the one down to the right of the forks, the cradle gets the power and I can pair it to the phone but the wonder wheel / Menu Rocker switch don't work as it looks like the bike is not picking up the preparation / cradle as a connection. Anyone else had this.

    I was assuming all the wiring looms are ready for the SatNav so connecting it up should be all that's needed. I don't see anything to "enable" the satnav preparation on the bike. Is it a duff unit?

    Any help would be appreciated.

  • Offline cw000de   de

    • XR Pro  ‐    52
    • ***
      #23

    Offline cw000de

    • XR Pro
    • ***
    • Posts: 52
    • Town / City: Nuremberg
    • Country: de
    Re: Sat Nav Power Connector
    Reply #23 on: June 20, 2022, 11:28:06 am
    June 20, 2022, 11:28:06 am
    Afaik, the cradle has to be activated by a dealer.

    If you bought the cradle online, you might have to pay for the activation at a local dealer. I heard that they take a sum of around 50 Euro.

  • Offline swalker2   gb

    • XR Newbie  ‐    5
    • *
      #24

    Offline swalker2

    • XR Newbie
    • *
    • Posts: 5
    • Town / City: Leeds, UK
    • Country: gb
    Re: Sat Nav Power Connector
    Reply #24 on: June 21, 2022, 11:45:59 am
    June 21, 2022, 11:45:59 am
    I have called the dealer today, you are right...and of course how did I not assume BMW wouldn't miss an opportunity to make something out of this.

    I don't know how much it is but its booked in for a software update. Apparently these updates can take 5 hours but also 20mins!!!

    Thanks for the update
